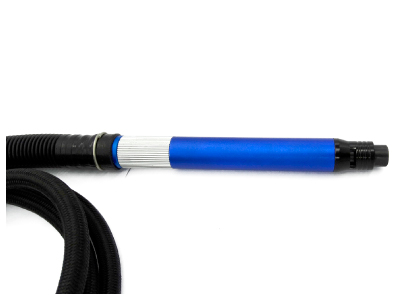

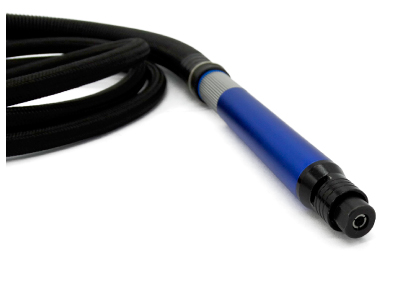

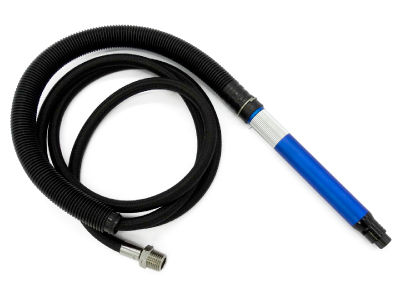

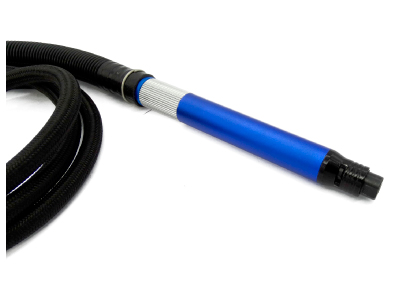

Air Micro Grinder (60,000 rpm)

Product Description

It has many specialties as follows: light and pen shaped design, small volume, high speed of rotation, low noise, large torque, low consumption of air, light and stable. And its operation is very easy, convenient and fast, which is applied in varieties moulds, hardware products, glass, crafts, accessories, circuit board extensively such as shoe mould, wheel mould, pen mould, household mould, etc. In a word, it applies in what need to be grinded, rubbed, carved and mirror polished.



Features

- It can handle 1/8" and 3m/m capacity collet chuck.

- Easy -to-handle roll type throttle for instant adjustment of speed.

- Built -in silencer for quiet operation.

- Ultra precision bearings support the rotating parts for true running.

- High speed operation less heating.

- It has good motor at 58,000 ~ 60,000 r.p.m.



Specification

- Collet Size：3 mm (1/8")

- Max Speed：60,000 rpm

- Net Weight：0.23 kg

- Length：132 mm

- Air Cons.：0.21 m³/min

- Air Inlet：1/4"

- Hose Size：5 mm

- Sound Pressure：92 dBA

- Air Pressure：90 psi

- Vibration：< 2.5 m/S2

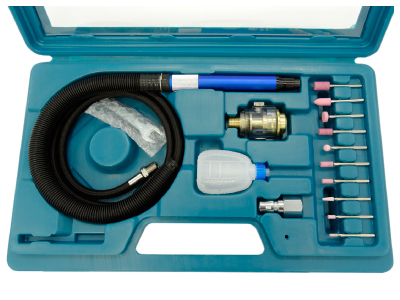

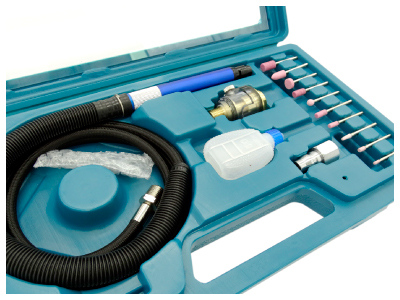

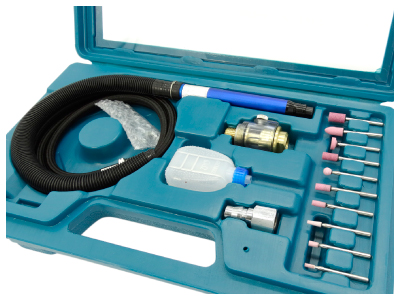

Kit List

1 Pc	60,000 rpm Air Micro Grinder(ADG-1824B3)
10 Pcs	3mm(1/8") Shank Stone
1 Pc	Mini Oiler
1 Pc	Oil Pot
2 Pcs	Key Wrench
1 Pc	Plastic Box
Packing	20 sets/2.5 cu.ft/G:16 kgs
