Simulation Test Kits for Hydrostatic Interlock Unit (H1-BASIC)

Product Description

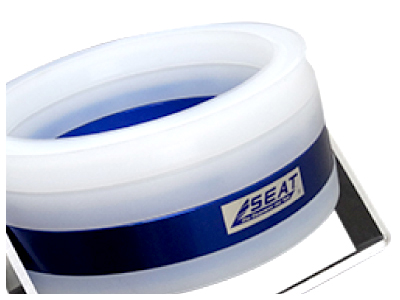

100% airtight seal / Patent design

BIG TBS-H1 is designed to test the condition of hydrostatic interlock unit. It uses the airtight seal head to input the pressure into interlock unit. You can easily repeat the tests in short time and get more details than release the lifeboat.

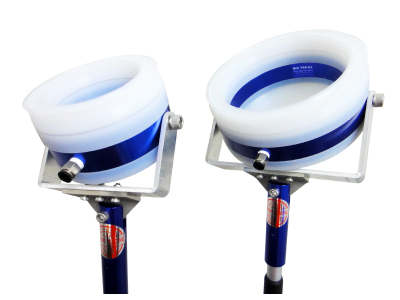

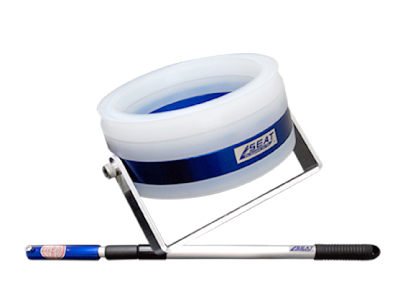

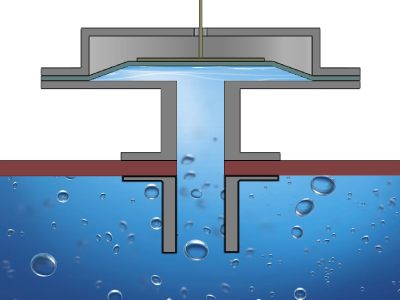

The pressure transmit head is designed with full airtight seal which gets the Patent in many countries. It simulates real sea water pressure to push the hydrostatic device into open condition. It solves the problems for taking time and cost to release lifeboat.



Easy Installation

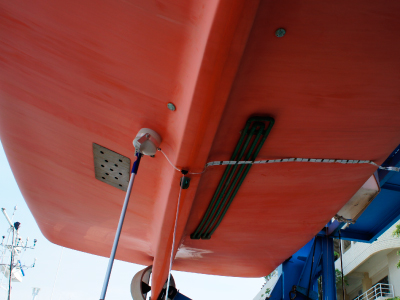

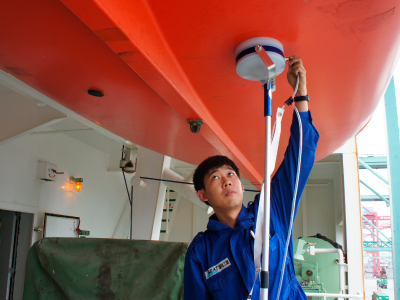

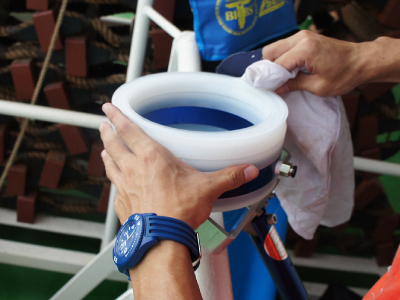

You only need 2 persons and take 10~20 minutes to finish the test. The Patent pressure head is designed with universal joint and can absorb in any type of the bottom of lifeboat.

Your ships need to be on schedule to provide your clients best service. BIG TBS-H1 is the total solution for you and your service lifeboats. It comes true that you do not have to release your boats but inspect the hydrostatic unit.

Repeat tests to check safety condition

You can repeat tests until all parts are checked with safety condition. Always keep the detail record on board and check whenever it is needed.

Detail record

You can repeat tests until all parts are checked with safety condition. Record the name, date, pressure number, test result on the log sheet. Always keep the detail record on board and check whenever it is needed.

Apply to air type and float type

BIG TBS-H1 provides real number on records instead watching and saying to show it is in good condition. You can show the real number to surveyor, PSC, superintendent and Administration.





Features

- Patent approval

- Easy to go

- Repeat test

- Detail record

- Apply in all types

- 100% airtight seal

- Self-test & drill



Specification

- Transmit head + Extension Supporter：Max length 300 cm

- Performance：

Transmit head (Large):Vacuum ability 19 ～ 36 kg/cm²

Transmit head (small):Vacuum ability 16 ～ 22 kg/cm²

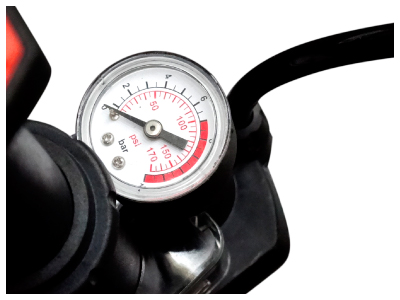

- Input pressure

Handle pump:10 bar

Electric pump:12 bar (60sec)

- Dimension：☆(outside-diameter/ inside-diameter x H )

Transmit head (Large) + Extension Supporter:☆20cm / 15.5cm x 11.5cm, 1.9 kg

Transmit head (small) + Extension Supporter:☆14cm / 10cm x 11cm , 1.4 kg

Hydraulic module:32cm x 29cm x 17cm (with case), 4.1 kg (with case)

Gravity/Drained tank:30cm x 20cm x 13.5cm, 1.0 kg

- Packing：1200x300x250 mm/Aluminum&canvas/G:12 kg/MOQ:1 or (4 in 1 pallet) set



Kit List

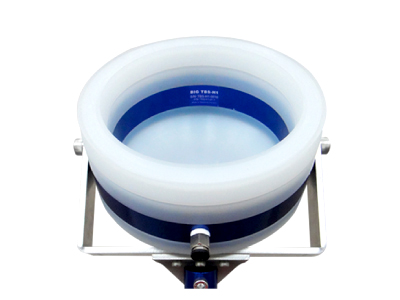

1 Pc	Pressure transmit head
2 Pcs	3m extension supporter
1 Pc	Anchor bearing

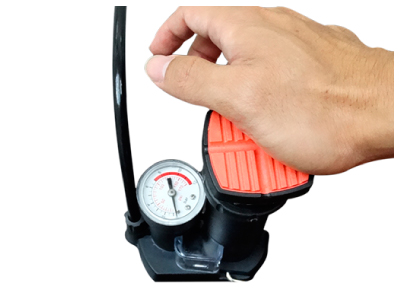

1 Pc	Manual pump
1 Pc	Universal joint
1 Pc	Tool bag

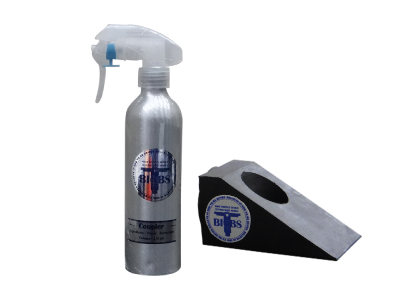

1 Pc	Coupler
1 Pc	Instruction



Test
