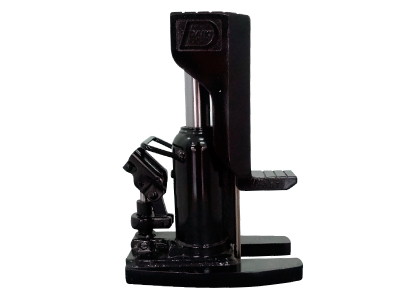

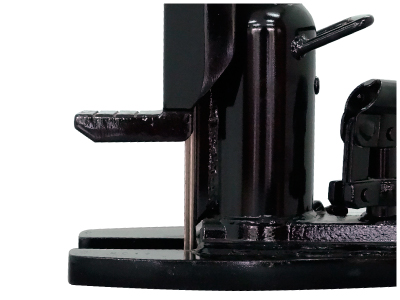

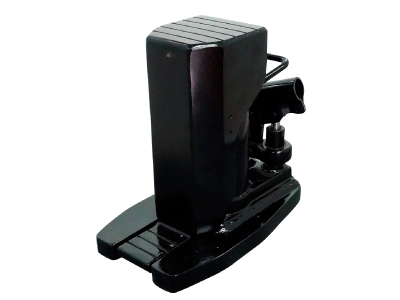

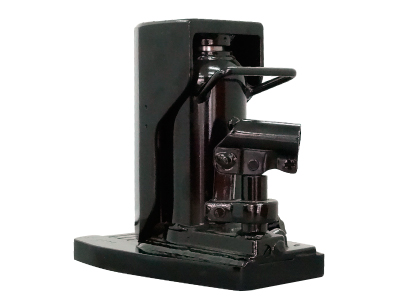

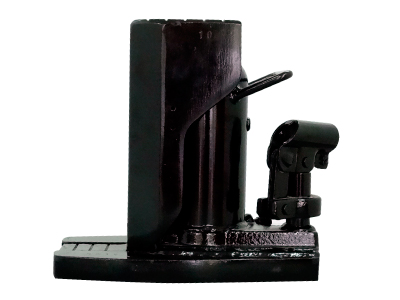

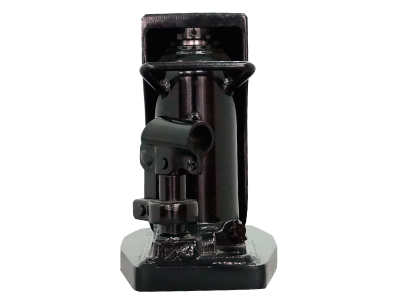

Hydraulic Genius Lifter

Products  >  Hydraulic Tools  >  Hydraulic Cylinders, Jacks, Lifting Products and Systems  >  Lifting Systems  >  Hydraulic Genius Lifter



hydraulic jack, toe jack, toe lift jack, bottle jack, hydraulic lift, car jack

hydraulic jack, toe jack, toe lift jack, bottle jack, hydraulic lift, car jackhydraulic jack, toe jack, toe lift jack, bottle jack, hydraulic lift, car jackhydraulic jack, toe jack, toe lift jack, bottle jack, hydraulic lift, car jackhydraulic jack, toe jack, toe lift jack, bottle jack, hydraulic lift, car jackhydraulic jack, toe jack, toe lift jack, bottle jack, hydraulic lift, car jackhydraulic jack, toe jack, toe lift jack, bottle jack, hydraulic lift, car jackhydraulic jack, toe jack, toe lift jack, bottle jack, hydraulic lift, car jackhydraulic jack, toe jack, toe lift jack, bottle jack, hydraulic lift, car jack


HGL series



Net Weight:8.5~88.5 kg

Strok:110~134 mm

Top capacity:5~50 ton

Toe-Lift capacity:2.5~25 tons

Plunger Diam.:32~42 mm

Certification:ISO 9001:2008, SGS, ilac-MRA, ASME

Place of Origin:Taiwan



Product Description

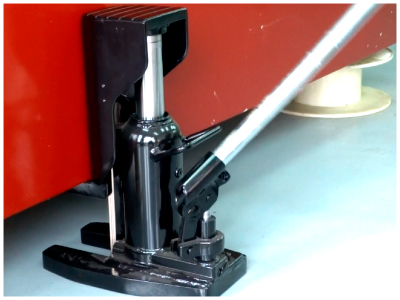

Hydraulic Genius Lifter is a powerful, robust, convenient and safe solution to move/lift and install heavy weight objects. Hydraulic Genius Lifter has the great ability by being able to lift in small clearanceto insert its peg. Use hydraulic manual pump and No need electric power is required, so it is practical for lifting up, expansion, and supporteven at accidents.





Features

- For various works and purposes such as narrow space.

- Suitable for heavy equipment and machine installation/remove workingunder narrow space on board, replacing machine foundations and pillars (go with MIT-RT Roll Tank to move heavy machinery).

- Save man power.

- Especially used in small gaps.



Specification

Model No.

Top Cap.

(ton)

Toe-Lift Cap. (ton)

Stroke

(mm)

Coll. Height

(mm)

Weight

(kg)

  HGL-05S

5

2.5

110

230

8.5

  HGL-10S

10

5

135

277

20.0

  HGL-10B

10

5

75

211

18.15

  HGL-20S

20

10

150

317

31.5

  HGL-20B

20

10

73

239

24.9

  HGL-30S

30

15

150

335

44.0

  HGL-50S

50

25

150

370

88.5

  HGL-10P

10

5

134

266

20.0

  HGL-10PH

10

5

134

266

20.0



Test



Customized Service

We provide best quality product to satisfty your order each time. More We can offer small amount with diversity and customized produciton. Your company logo and informaiton would be shown on product, catalog, brochure...etc. With no limit of minimum order, you can easily have a new product line in your company.
- R & D Team
- Art Team
- 3D Printer
- Laser color & Barcode printer



Company Information

S.E.A.T. Industry Technology Co., Ltd. integrates our advantages on research, design, production, techniques, service, and innovation; and gathers a group of experienced and practical R & D personnel. We develop a series maritime industry product including safety equipment, hydraulic tools, pneumatic tools, special ship hand tools. It includes a number of patent approval test kit and simulation test equipment. We dedicate improving marine safety work condition, making maintenance more efficient and creating non-risk working condition.



Packaging & Shipping

We own a trained and experienced shipping team who would guide you to choose the reasonable shipping way by
- Sea delivery
- Air delivery
- Collect by your forwarder
The shipping team provides full documents and update latest making procedure to make sure you can get your order on time.
