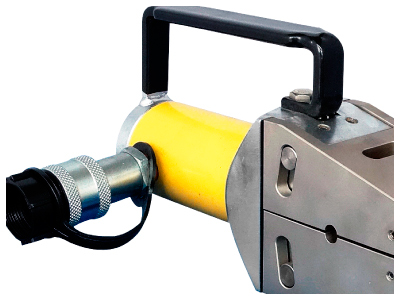

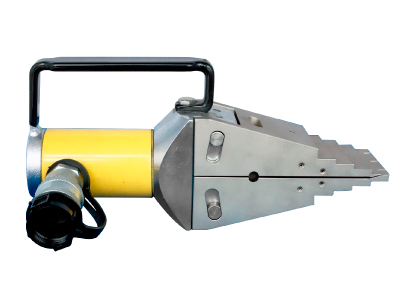

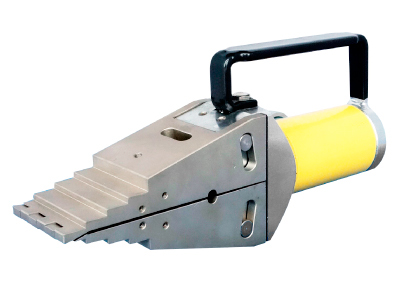

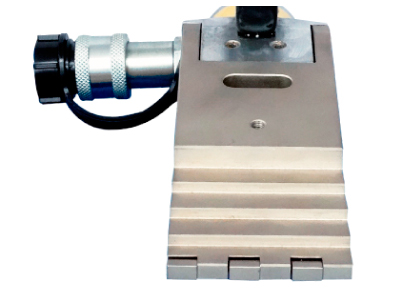

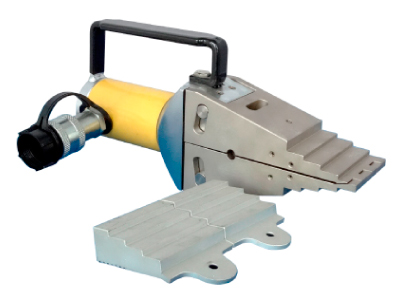

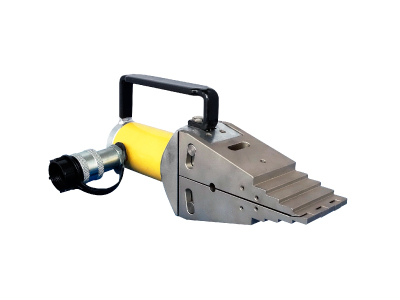

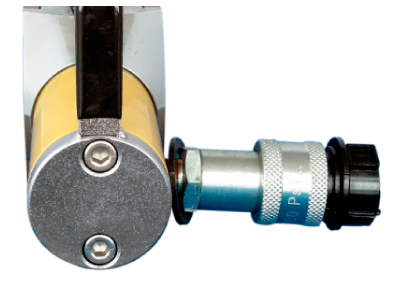

Hydraulic Flange Spreader

Product Description

- Hydraulic Flange Spreader is the most efficient tools for high pressureand large pipe/tube.

- Hydraulic Flange Spreader separates pipe / tube to do inspection, mat replacement, seal replacement and other conditional work.

- Hydraulic Flange Spreader has high request of tightness of high pressure and large pipe. It needs to replace the seal ring, screws or bolts when it serves for a certain time. It is not hard to do such periodical work, but if we cannot separateflanges properly, it would become a big and complicating work

- Even worse, the wrong tools or wrong methods would damage the flange surface and cause more problems.

- Hydraulic Flange Spreader is the smartest and most efficient tools for flange work

- It can be operated for 2 or 4 spreader simultaneously

- The flanges can be separated by engineer’s instruction by fast and simple step

- You can get a clear understanding for how it works





Features

- Only requests an access gap of 0.24"(6mm)

- Automatic mechanical retraction

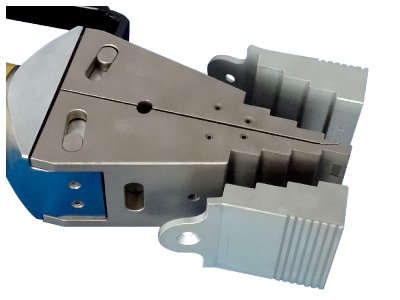

- Unique interlocking: no first step bending and risk of slipping our of joint

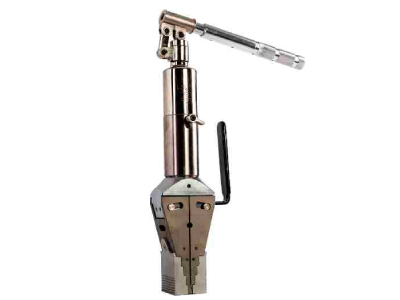

- Can go with hydraulic handle pump to separate flange

- Can spread and separate flange in few seconds and recover back

- Can operate 2 or 4 flange spreaders with Torque Wrench Pump at the same time

- Can replace pads, seal rings or screws in safe and efficient way



Specification

Model No.	Max. Spread Force ton (kN)	Tip Clearance mm	Max. Spread mm	Oil Capacity c.c	Weight kg
HFS-40	14 (125)	6	81	78	7.1
HFS-401	14.5 (125)	6	81	152	8.0
HFSM-8	8 (72)	6	81	－	6.5



Test



Customized Service

We provide best quality product to satisfty your order each time. More We can offer small amount with diversity and customized produciton. Your company logo and informaiton would be shown on product, catalog, brochure...etc. With no limit of minimum order, you can easily have a new product line in your company.
- R & D Team
- Art Team
- 3D Printer
- Laser color & Barcode printer



Company Information

S.E.A.T. Industry Technology Co., Ltd. integrates our advantages on research, design, production, techniques, service, and innovation; and gathers a group of experienced and practical R & D personnel. We develop a series maritime industry product including safety equipment, hydraulic tools, pneumatic tools, special ship hand tools. It includes a number of patent approval test kit and simulation test equipment. We dedicate improving marine safety work condition, making maintenance more efficient and creating non-risk working condition.



Packaging & Shipping

We own a trained and experienced shipping team who would guide you to choose the reasonable shipping way by
- Sea delivery
- Air delivery
- Collect by your forwarder
The shipping team provides full documents and update latest making procedure to make sure you can get your order on time.



Payment & Express



Our Clients & Agents

For business partners, we are looking for agents & distributors in the world.
For clients/users, we like to guide you to your neartest distributor from you.
