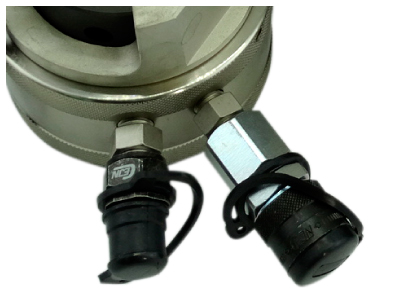

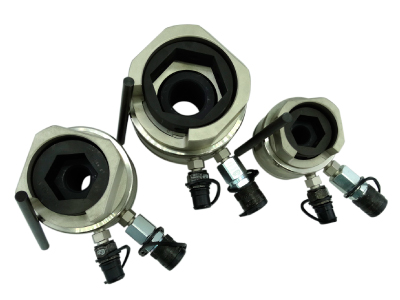

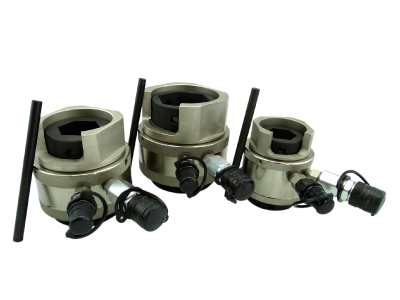

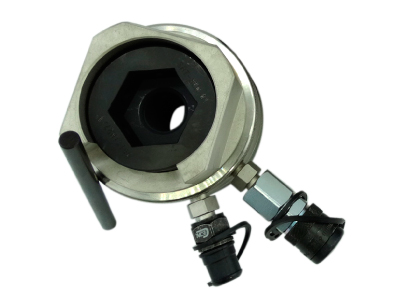

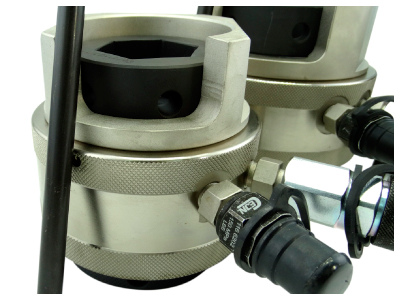

Hydraulic Bolt Tension

Features

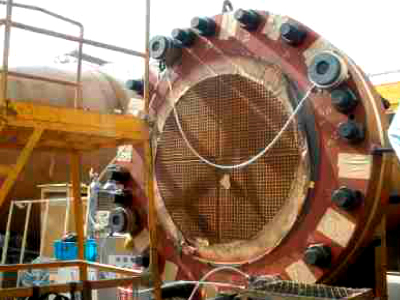

- Fit all Standard flanges including ANSI and API Flanges

- Lightweight and easily handled design

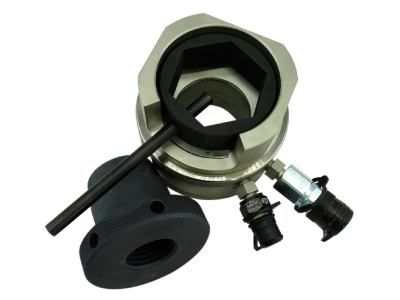

- Quick-Release bridge and Hex. Socket design-for fast change over

- Electro-less nickel plating prolongs tool life and reduces on-the-job maintenance

- Improved seal design offer increased reliability

- Simple and easy to maintain





Specification

Model No.		HBT-M27	HBT-M36	HBT-M45	HBT-M27	HBT-M36	HBT-M45	HBT-M52	HBT-M52	HBT-M52	HBT-M52
Bolt dimension   (Ø*pitch)   Metric		M20*2.5	M27*3	M36*4	M42*4.5	M45*4.5	M60*5.5	M72*6	M80*6	M100*6	M125*6
		M22*2.5	M30*3.5	M39*4	M45*4.5	M48*5	M64*6	M76*6	M85*6	M110*6	M130*6
		M24*3	M33*3.5	M42*4.5	M48*5	M52*5	M68*6	M80*6	M90*6	M120*6	M140*6
		M27*3	M36*4	M45*4.5	M52*5	M56*5.5	M72*6		M95*6	M125*6	M150*6
						M60*5.5	M76*6		M100*6
Threads (Ø*in-)   imperial		3/4"-10	1"-8	1-3/8"-6	1-1/2"-6	1-3/4"-5	2-1/2"-4	2-3/4"-4	3-1/4"-4	3-3/4"-4	5"-4
		7/8"-9	1-1/8"-7	1-1/2"-6	1-3/4"-5	2"-4-1/2	2-3/4"-4	3"-4	3-1/2"-4	4"-4	5-1/4"-4
		1"-8	1-1/4"-7	1-3/4"-5	2"-4/1/2	2-1/4"-4-1/2			3-3/4"-4	4-1/4"-4	5-1/2"-4
			1-3/8"-6							4-1/2"-4	5-3/4"-4
										4-3/4"-4
Max.Pressure	(bar)	1500	1500	1500	1500	1500	1500	1500	1500	1500	1500
	(psi)	21756	21756	21756	21756	21756	21756	21756	21756	21756	21756
Hydraulic area	(cm2)	20	35	50	60	90	130	160	200	250	310
	(in2)	3.1	5.43	7.75	9.3	13.95	20.15	24.8	31	38.75	48.05
Max. hydraulic  load	(kN)	300	525	750	900	1350	1950	2400	3000	3750	4650
	(lbf)	67443	118025	168606	202328	303492	438377	539541	674426	843032	1045360



Test



Customized Service

We provide best quality product to satisfty your order each time. More We can offer small amount with diversity and customized produciton. Your company logo and informaiton would be shown on product, catalog, brochure...etc. With no limit of minimum order, you can easily have a new product line in your company.
- R & D Team
- Art Team
- 3D Printer
- Laser color & Barcode printer



Company Information

S.E.A.T. Industry Technology Co., Ltd. integrates our advantages on research, design, production, techniques, service, and innovation; and gathers a group of experienced and practical R & D personnel. We develop a series maritime industry product including safety equipment, hydraulic tools, pneumatic tools, special ship hand tools. It includes a number of patent approval test kit and simulation test equipment. We dedicate improving marine safety work condition, making maintenance more efficient and creating non-risk working condition.



Packaging & Shipping

We own a trained and experienced shipping team who would guide you to choose the reasonable shipping way by
- Sea delivery
- Air delivery
- Collect by your forwarder
The shipping team provides full documents and update latest making procedure to make sure you can get your order on time.
