Battery Analyzer

Product Description

Test helper

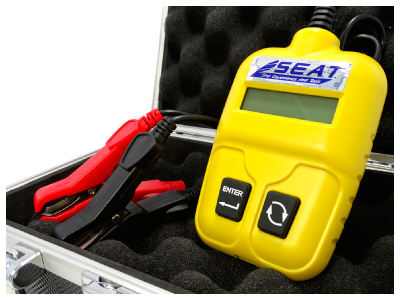

Lifeboat battery is the part of electric system which is the main item in during lifeboat inspection because it concerns whether the lighting system or starting system can be operate well. BIG TBS-BA is made and designed by Battery analyzer from Taiwan and applied in lifeboat inspection. The equipment improves the service of lifeboat inspection to be more scientific with real data.

Why do we check the lifeboat battery?

The lifeboat engine is supposed to start within 15 seconds in any kind of circumstances. If the engine fails to start due to the poor battery condition, the reason would be neither battery problem or charge system problem. Sometimes the battery is healthy but fail to start because of the charge system. BIG TBS-BA (Battery analyzer) would be the best helper to check the battery condition easily.



To measure the battery voltage

For check the supply of voltage output.

To measure the CCA number

For check the current of cold starting. (CCA Cold Cranking Amp) number is also the manufacturers’ criteria for testing the battery.

The current of load discharge for 30 seconds in -18℃ condition, which means the higher number of CCA can provide more cold starting current for lifeboat engine.

On the contrary, the older lifeboat engine would be found hard to start.

To measure the electric resistance

The aged battery plate group would be degenerated and have more electric resistance. BIG TBS-BA is able to measure the battery health so that we can analyze the above-mentioned data to check the battery is in the good condition. And make suggestion for the ship owner to replace the battery when the health is lower than 45%.





- You can check the good or poor condition of battery.

- You can check the battery health.

- You can check the charge system and starting motor problem.

- You can make suggestion ship owner to replace new battery in advance.

- You can gain more reliabilities by lowering down the chance of battery failure to be marked error or negative record.

- You can promote your inspection team and your company reputation.



Features

- Small and compact

The Battery Analyzer is small and light for anyone to use in any place

- All application

It fits for any lifeboat and all batteries

- LED display

Connect with battery to turn on the LED display to see the number clearly

- Battery health figure

Test the real battery health instead of voltage number

- Measure the CCA number

Check the voltage of cold starting

- Detailed and Repeated

Detailed numbers on test report and repeat the test in short time

- Training & Education

Best tool for new crews or students for watching and learning

- Save & Safe

Save you time, save your cost & save your lifeboat



Specification

Consumption Power	：0.08W max
Input Voltage	：9-18V DDC
Test Standard	：SAE, DIN, EN, IE C
Battery Size Range	：10-999 CCA
Battery onstructions Supported	：12V lead-acid batteries(Wet, MF, VRLA and AGM)and lead-calcium batteries
Battery type Supported	：Cranking battery
Voltage Accuracy	：±3%
Current Accuracy	：±5%
Resistance Accuracy	：±5%
Health Condition	：±10%
Operating Temperature	：-10℃~50℃
Water Resistance	：IPX-3

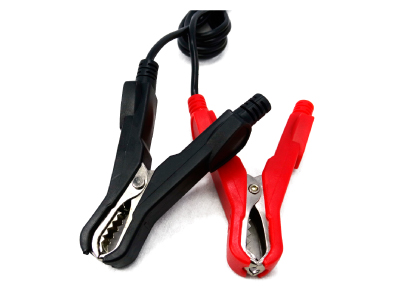

Length of the Cable	：1000mm
Dimensions	：122(L) x 80(W) x 30(H) mm

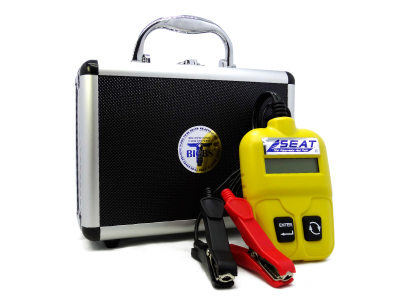

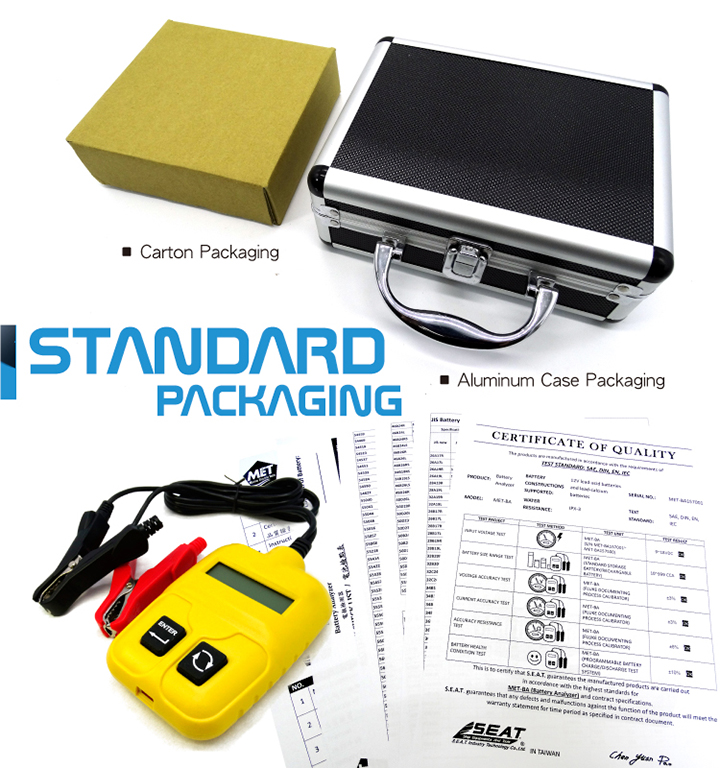

Kit List

1 Pc	MET- Battery Analyzer
1 Pc	Certificate of Quality
1 Pc	Instruction Manual
1 Pc	Battery CCA List
1 Pc	Battery Check List
