Simulation Test Kit for Lifeboat Release and Retrieval System

Product Description

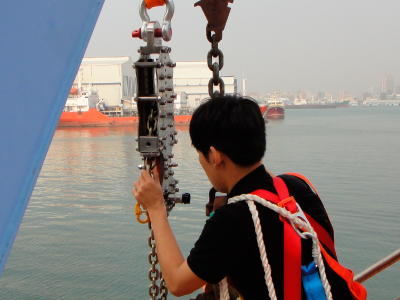

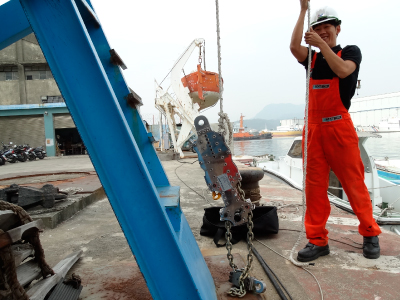

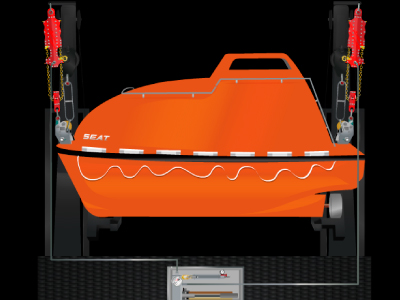

R7 Simulation Tester is designed for LRRS (Lifeboat Release & Retrieval system) to carry out on-load and off-load test. The equipment lifts up lifeboat by hydraulic power and takes over lifeboat weight. The operating personnel can pull the release handle to turn the release hook to open condition to check the function of the gear.

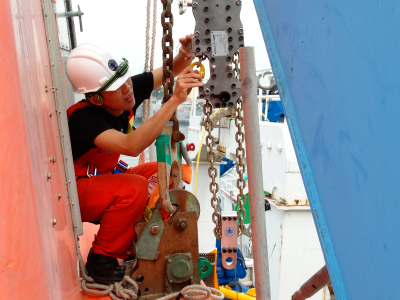

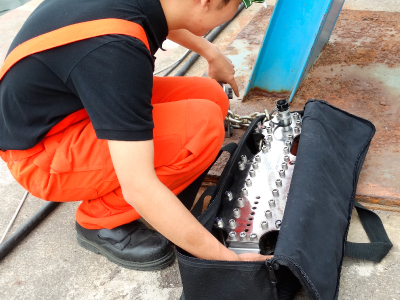

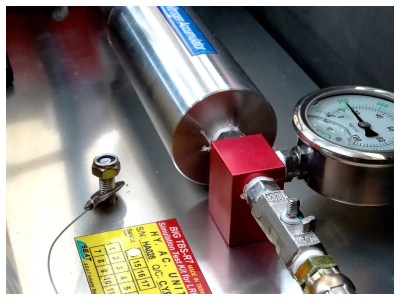

When we plan to do on-load test (annual inspection or 5-year inspection), the R7 Lifers lifts up lifeboat by hydraulic power to take over lifeboat weight. Then turn the check-valve to make part of hydraulic back to cylinder, the lifeboat weight is back to release hook. After the release handle is pulled, the lifeboat is release down with strong dynamic loading, at the moment the cylinder would absorb the shock loading by half compressed air and half non-compressed hydraulic to keep the lifeboat safe.







Simulation testers can be used in any circumstances, whether the lifeboat is in port side, the weather is foul or the port restrict for release. The alternative test is encouraged by IMO. Simulation tester is the best solution for service stations and ship owners to make the complicated inspection to be simple.





Features

- Patent product

Owns patent right in USA, China, Taiwan and more countries are applying.

- All application

The tools can be applied in all ships, lifeboats & platform.

- Simulate real condition

The simulation testers provide real testing condition by sea water to push the interlock on.

- Detailed and Repeated

Detailed numbers on test report and repeat the test in short time.

- Training & Education

Best tool for new crews or students for watching and learning.

- Save & Safe

Save you time, save your cost & save your lifeboat.



Specification

- MBL：26922 kg (SGS test report)

- Proof load：9600 kg (SGS test report)

- Max lifting load：7500 kg

- SWL：7000 kg

- WWL：6400 kg

- Max length：1400 cm(Lifter + chain) / 1900 cm (Lifter + chain + buffering rope)

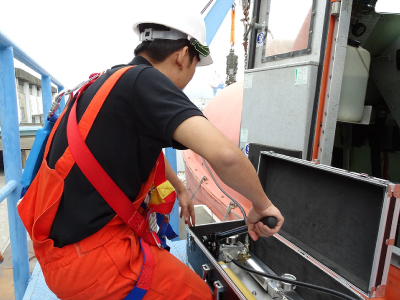

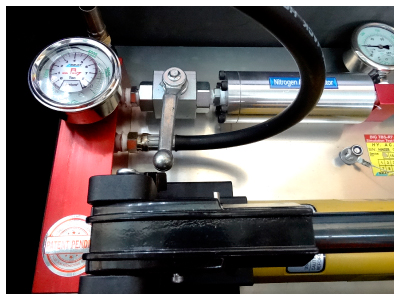

- Actuation force of hydraulic manual pump：100N (≒10kg)(in less than 3 tons) / 200N (≒20kg) (in less than 5 tons)

- Apply to lifeboat：6000 kg and below

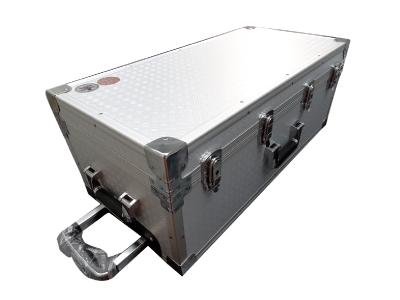

- Packing：2 pcs Lifter(750x350x300 mm/G:31.8 kg), 1 pc Lifter case(750x350x300 mm/G:21.2 kg), 1 pc Tool case(540x130x340 mm/G:19.0 kg)



Kit List

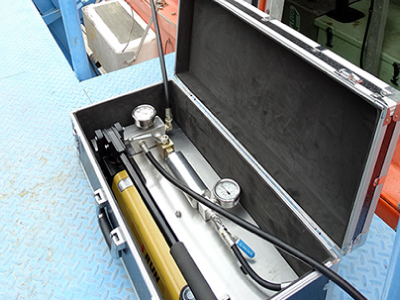

1 Pc	R7-Hydraulic Module case
1 Pc	Off-load & On-load quick instruction (magnet board)
1 Pc	Hydrualic module instruction

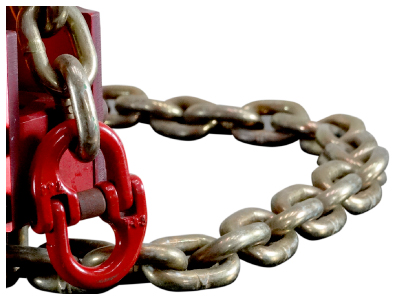

1 Pc	Tackle assembly
1 Pc	Certificate
1 Pc	Test Report
1 Pc	Check list
1 Pc	Instruction Manual
1 Pc	DVD (document and media)

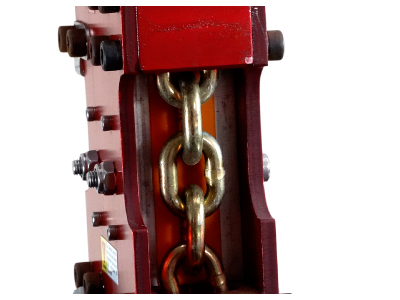

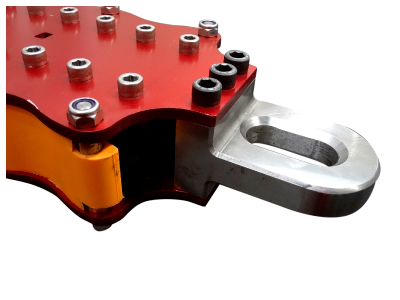

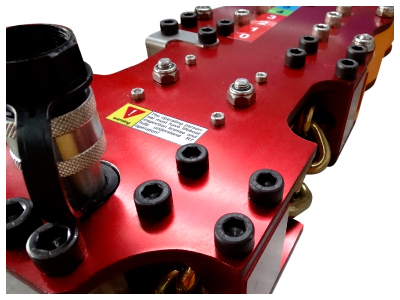

1 Pc	Lifter A
1 Pc	Name tag with S/N & date for R7
1 Pc	FPD 6T-1.0M
1 Pc	Lifter B
1 Pc	Tool case

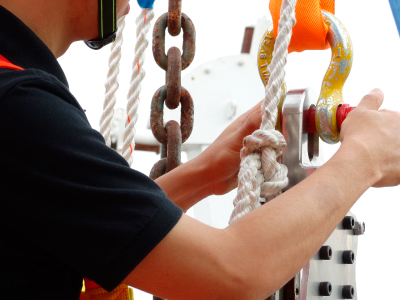

8 Pcs	SWL 8.5 ton shackle
4 Pcs	SWL 6.0 ton shackle
2 Pcs	Buffering rope 6T-0.5M



Test



Customized Service

We provide best quality product to satisfty your order each time. More We can offer small amount with diversity and customized produciton. Your company logo and informaiton would be shown on product, catalog, brochure...etc. With no limit of minimum order, you can easily have a new product line in your company.
- R & D Team
- Art Team
- 3D Printer
- Laser color & Barcode printer



Company Information

S.E.A.T. Industry Technology Co., Ltd. integrates our advantages on research, design, production, techniques, service, and innovation; and gathers a group of experienced and practical R & D personnel. We develop a series maritime industry product including safety equipment, hydraulic tools, pneumatic tools, special ship hand tools. It includes a number of patent approval test kit and simulation test equipment. We dedicate improving marine safety work condition, making maintenance more efficient and creating non-risk working condition.



Packaging & Shipping

We own a trained and experienced shipping team who would guide you to choose the reasonable shipping way by
- Sea delivery
- Air delivery
- Collect by your forwarder
The shipping team provides full documents and update latest making procedure to make sure you can get your order on time.
