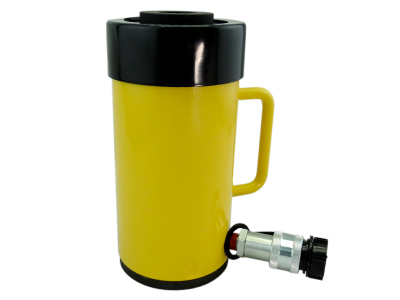

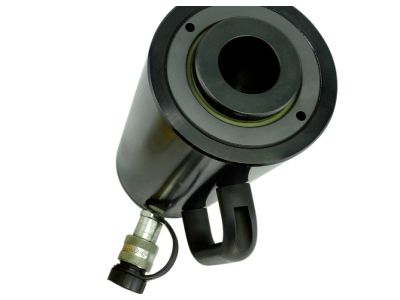

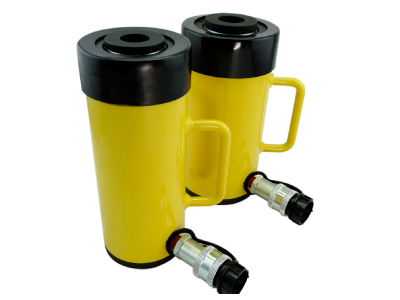

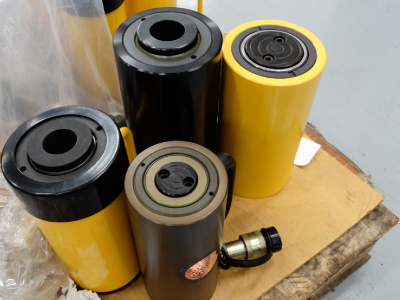

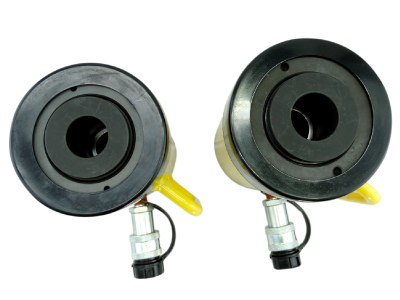

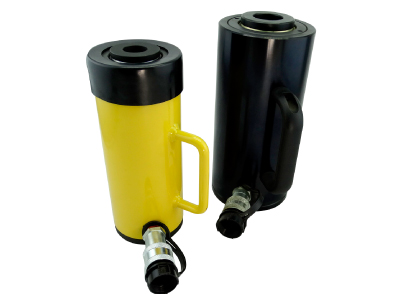

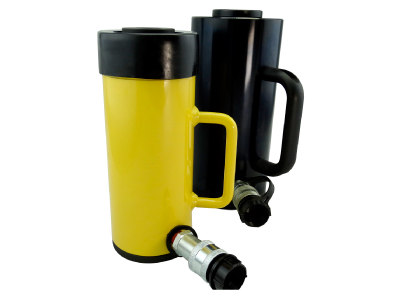

Hollow Plunger Jack

Features

- Hollow plunger design allows for pulling and pushing application.

- Low profile and longer strokes fit in the tightest space.

- Withstands full "dead-end" loads.

- Collar threads for easy fixturing and all collar thread have a cap for protection.

- Special center tube protect plunger and inner of cylinder increases product life.

- Hard chrome plated plunger and inner of barrel resists wear and corrosion.

- Spring returing.

- Wiper rings protect the piston, bore & tube from contamination.

- Stop ring for piston blow-out protection.

- Powder coat finish for increased corrosion resistance and antirust.

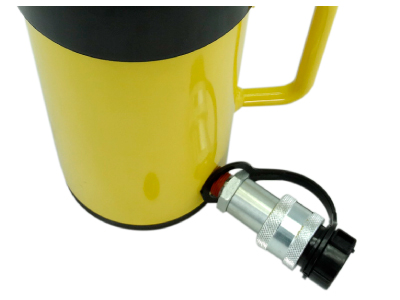

- Come with quick female coupler & dust cap.





Specification

Model No.	Cylinder Capacity ton (kN)	Stroke (mm)	Collapsed Height (mm)	Center Hole Diam. (mm)	Weight (kg)
HPJ-1120	13 (125)	8	55	19.6	1.70
HPJ-1121		42	120	19.6	3.00
HPJ-11211		42	120	19.6	3.00
HPJ-1123		76	184	19.6	4.60
HPJ-1202	20 (215)	49	162	26.9	8.20
HPJ-1204		102	242	26.9	10.50
HPJ-1206		155	306	26.9	14.60
HPJ-1302	30 (326)	64	178	33.3	11.55
HPJ-1304		12	233	33.3	14.75
HPJ-1306		155	330	33.3	22.45
HPJ-1603	60 (576)	76	247	53.8	29.70
HPJ-1606		153	323	53.8	37.00
HPJ-11033	95 (931)	76	254	79	66.60
