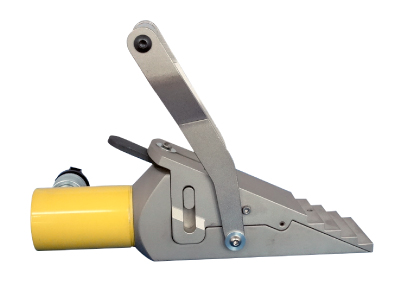

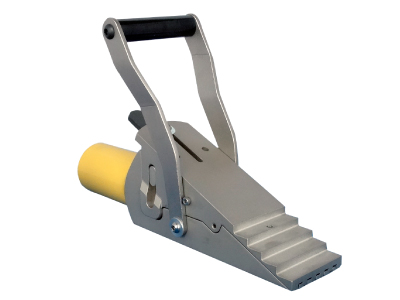

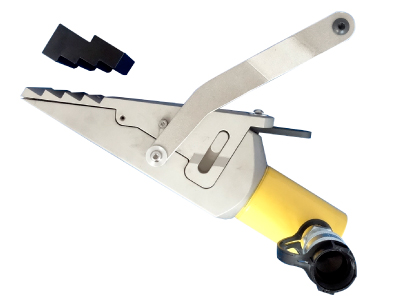

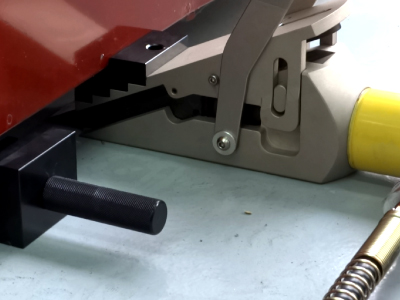

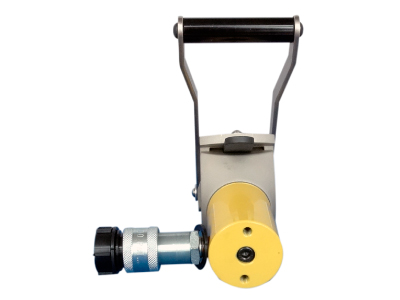

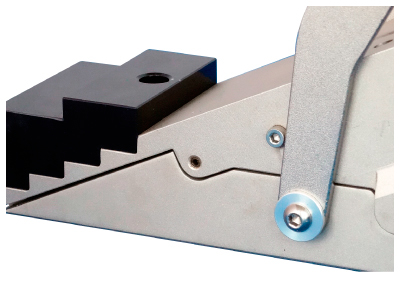

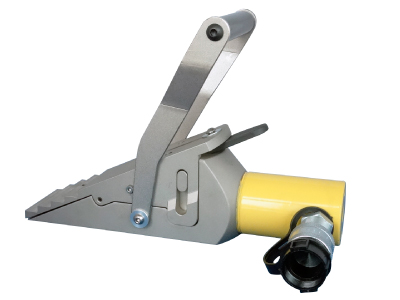

Hydraulic Fork Lifter

Products  >  Hydraulic Tools  >  Mechanical & Hydraulic Bolting Tools  >  Joint Separation Tools  >  Hydraulic Fork Lifter



hydraulic jack, toe jack, toe lift jack, bottle jack, hydraulic lift, car jack

hydraulic jack, toe jack, toe lift jack, bottle jack, hydraulic lift, car jackhydraulic jack, toe jack, toe lift jack, bottle jack, hydraulic lift, car jackhydraulic jack, toe jack, toe lift jack, bottle jack, hydraulic lift, car jackhydraulic jack, toe jack, toe lift jack, bottle jack, hydraulic lift, car jackhydraulic jack, toe jack, toe lift jack, bottle jack, hydraulic lift, car jackhydraulic jack, toe jack, toe lift jack, bottle jack, hydraulic lift, car jackhydraulic jack, toe jack, toe lift jack, bottle jack, hydraulic lift, car jackhydraulic jack, toe jack, toe lift jack, bottle jack, hydraulic lift, car jack


HFL series



Net Weight: 8.98 kg

Feature: Quick and Easy Operation

Advantage: Save Time and Cost

Certification:ISO 9001:2008, SGS, ilac-MRA, ASME

Place of Origin:Taiwan



Product Description

- Hydraulic Fork Lifter compressed by handle rotation instead of electric power. The Spreader is light but the holding head is hard and resistant.

- Hydraulic Fork Lifter is good to apply in 100A-500A pipe systems. Even works when there is no gap in between flanges

- Hydraulic Fork Lifter is the best tools for any pipe systems in cabin or deck.

- When flange pad is leaking or damaged and needs to be replaced, we consider it is an easy work but it actually takes more time and manpower than our expectation to replace the pad or seal.

- It is time to use Hydraulic Fork Lifter to go your work

- With no electric power, it is operated by hand to provide the rotating compression with high torque pressure.

- It is easy to separate stocked flanges and stocked seals.

- It also works in no gap flange or flanges in narrow space or high level area.

- It comes true that replace the flange pad in pipe systems in short time.

- It is completely safe with no fire work to operate - For rusty bolts, it is also easy to separate in safety and efficiency.





Features

- stable lift motion

- robust and precise tool

- secure hold on each step

- safe operation

- saves time

- saves cost



hydraulic wedgie, spread cylinder, hydraulic spread cylinder, hydraulic spreader jack, spreader jack tool,  mechanical wedge



Specification

Model No.

Max. Lifting Force

ton (kN)

Minimum clearance Gap

(mm)

Max. Lift pre Stage

(mm)

Max. Lift Ht.

(mm)

Max. Lift Ht.

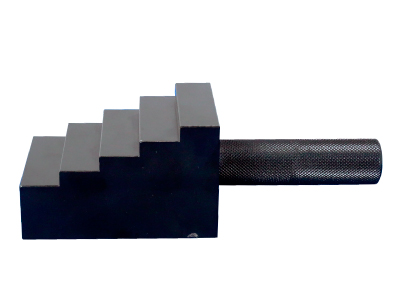

Using stepped block

(mm)

Weight

(kg)

  HFL-16

16 (157)

9.9

21.1

51.3

69.1

7

  HFL-161

16 (157)

9.9

21.1

51.3

69.1

7
