Hydraulic Square Wrench

Products  >  Hydraulic Tools  >  Mechanical & Hydraulic Bolting Tools  >  Controlled Tightening Tools  >  Hydraulic Square Wrench



hydraulic wrench, torque tools, torque wrench, hydraulic torque wrench, square drive, torque wrench set

hydraulic wrench, torque tools, torque wrench, hydraulic torque wrench, square drive, torque wrench sethydraulic wrench, torque tools, torque wrench, hydraulic torque wrench, square drive, torque wrench sethydraulic wrench, torque tools, torque wrench, hydraulic torque wrench, square drive, torque wrench sethydraulic wrench, torque tools, torque wrench, hydraulic torque wrench, square drive, torque wrench sethydraulic wrench, torque tools, torque wrench, hydraulic torque wrench, square drive, torque wrench sethydraulic wrench, torque tools, torque wrench, hydraulic torque wrench, square drive, torque wrench sethydraulic wrench, torque tools, torque wrench, hydraulic torque wrench, square drive, torque wrench sethydraulic wrench, torque tools, torque wrench, hydraulic torque wrench, square drive, torque wrench set

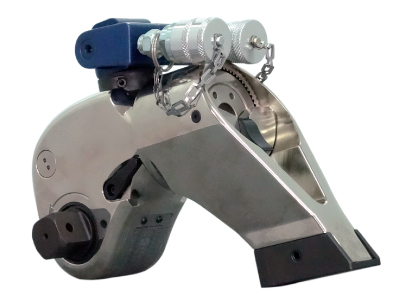

HSW series



Square Drive:3/4"~2-1/2"

Min. Torque:200lbf~7120lbf

Max Torque:1414lbf~51022lbf

Certification:ISO 9001:2008, SGS, ilac-MRA, ASME

Place of Origin:Taiwan



Product Description

- Hydraulic Square Wrench is designed for pressure tube/pipe system, high torque and vibration mechanism foundation, circle connection foundation and jackshaft which has its specific standard on tighten and remove torque
- Hydraulic Square Wrench can provide torque with high and accurate pressure to take over human work
- Hydraulic Square Wrench can provide torque pressure in two or four bolts simultaneously to go with tightening or removal work
- It makes the work time shorter for 2 to 4 times and complies with regulations in rules and instruction guide book for tightening and removal standard to achieve proficiency and perfection





Features

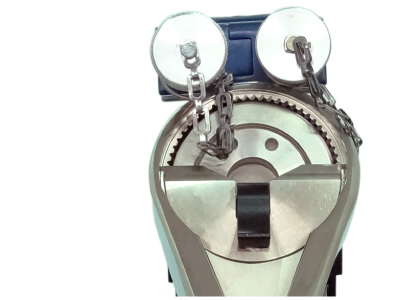

- Dual Pawl Mechanism-Heavy duty.

- 360 degree Reaction Arm-Easy to working in any position.

- Click-on Reaction Arm-Easy to change Reaction Arm.

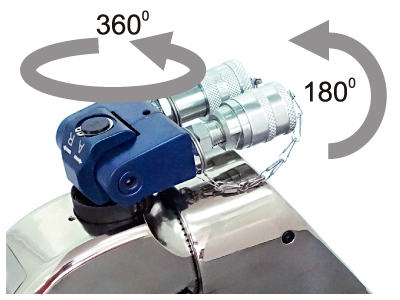

- 360 x 180 degree Swivel-Hose-free operation

- Push-butlon drive release-Quick change drive side.

- One-way Ratchet-the only way to assure hands-free and multi-tool operation.

- Aviation material Body housing-Aluminum-litanium alloy and high strength steel.

- Anti-Lock Switch.

- Anti-Rust Finish-Special surface treatment.

- Small Operating Radius.

- Anti-Back Lash Mechanism.

- "Drop Hole" will protect over pressure operating.

Torquet Accuracy : +/-3%

Repeatability : 100%

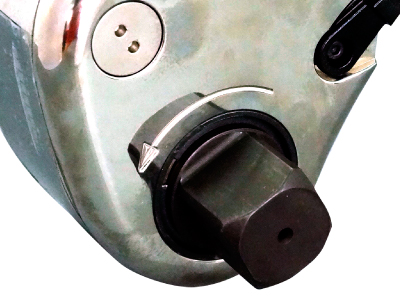

Button change square driver

Button change square driver

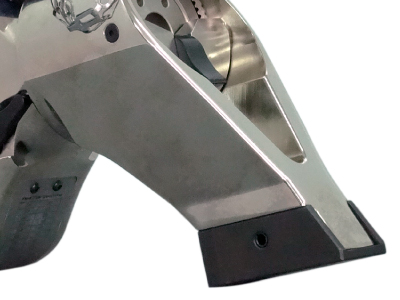

Steel boot

Steel boot

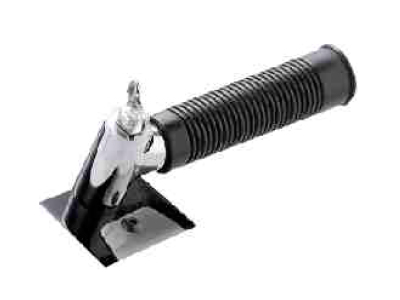

Removable handle

Removable handle

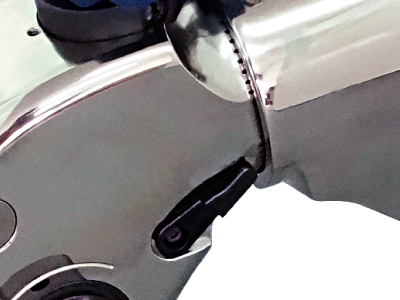

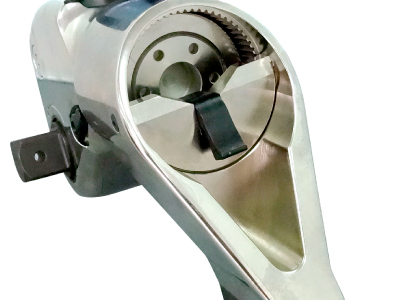

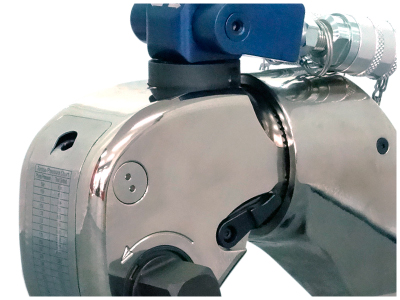

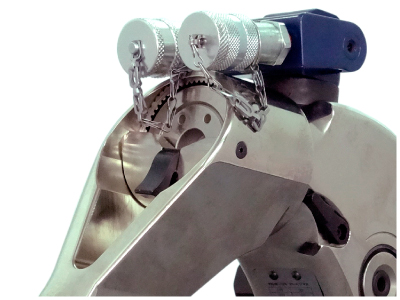

Reaction pawl-prevent ratchet reverse

Reaction pawl-prevent ratchet reverse

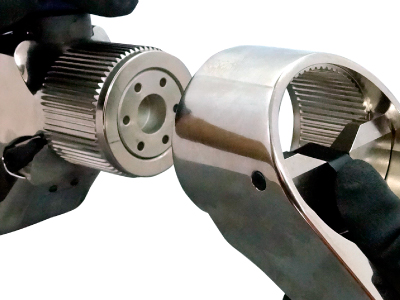

Reaction arm small tooth orientation

Reaction arm
small tooth orientation

Fixed Button

Fixed Button

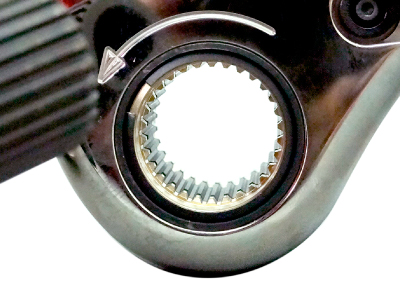

Small tooth driver

Small tooth driver

hydraulic wrench, torque tools, torque wrench, hydraulic torque wrench, square drive, torque wrench set







Specification

Model No.

Square Drive

Min. Torque

Max. Torque

(lbf.ft)

(N.m)

(lbf.ft)

(N.m)

  HSW-1

3/4"

200

271

1414

1911

  HSW-3

1"

480

651

3339

4512

  HSW-5

1-1/2"

1185

1602

7977

10780

  HSW-8

1-1/2"

1185

1602

7977

10780

  HSW-10

1-1/2"

1755

2379

11727

15847

  HSW-20

2-1/2"

2960

4013

20115

27183

  HSW-25

2-1/2"

3817

5158

25697

34725

  HSW-35

2-1/2"

5235

7120

37756

51022
