Gas Detector 4 in 1

Products > Electric Tools > Gas Detector 4 in 1

gas detector, gas leak detector, leak detector, gas leak, carbon monoxide

MET-GD4S

Maritime Industrial Grade

Only 300g

Lightweight and small

3.7V 2300mA rechargeable lithium battery for 80 hours (※12 hours)

※ Flammable gas is available, continuous operating can reach to 12 hours for 4 sensors work at the same time.

Place of Origin：Taiwan

Product Description

- Outstanding durable 4 in 1 (CO, H2S, O2 and Flammable Gas) alarm analyzer Gas Detector.

- MET-GD4(S) Gas Detector 4 in 1 is an accurate technology which detect CO (Carbon monoxide), H2S (Hydrogen sulfide), O2 (Oxygen) and Flammable Gas before personnel enter to enclosed spaces where MSC.1/Circ.1485 required in maritime industry.

- It is light and compact to carry around and designed with warning alarm.

- MET-GD4(S) detects gas fast and accurately with reliable stability.

- Made of strong and durable ABS which can proof shark loading.

- Designed with big display to demonstrate 4 numbers in each gas.

- The measure unit can be switch to PPM/mg/m3

- 3.7V 1800mA (GD4) rechargeable lithium battery for 50 hours, continuous operating can reach to 9 hours; 3.7V 2300mA (GD4S) rechargeable lithium battery for 80 hours, continuous operating can reach to 12 hours.

- There are 4 sensors inside the MET-GD4(S) to detect 4 gases at the same time.

- It is packed by an aluminum tool case for carrying, storage and protection.

- Applied in mining industry, livestock industry, beverage industry, refrigeration industry, poultry house and so on.

- Data record: More than 100 thousands data storage, data storage at five minute intervals, and continuous storage for 15 months. Data storage can adjust from 10-3600 seconds. Data transmission: USB port data transmission with computer software, users can download and print the testing results (Optional function)

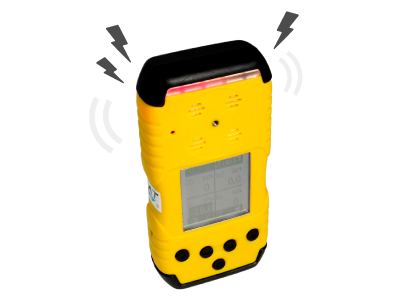

Warning Flash Light

The red LED light with high sensitivity is always the best alarm for keeping safe in the shortest time.

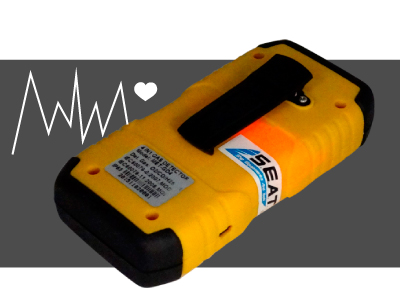

Heart Beating Flash Light

The red light is flashing on the back while testing.

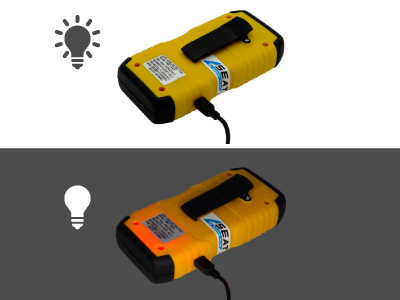

Recharge Indicate Light

Lithium battery takes only 10 hours for fully recharge. The red LED light as the recharge reminder on the back.

Features

- MSC.1/Circ.1485

Fully comply with IMO MSC.1/Circ.1477 and 1485

- Gas Detector 4 in 1

Detect CO (Carbon monoxide), H2S (Hydrogen sulfide), O2 (Oxygen) and Flammable gas

- Rechargeable Lithium Battery Battery

3.7V 2300mA rechargeable lithium battery, 12hrs in work, recharge time less than 6 hrs

- Explosion-Proof Design

Prevent any explosion in dangerous environment caused by flammable gas

- Light & Compact

Easy to carry around, for users in climbing ladder or narrow water tank

- Temperature & Humidness Resistance

Fit in high dangerous, confined and restricted areas

-For Ships & Maritime

Field Designed for ships and maritime

Application

- MSC.1485 maritime work (MSC.1485 required)

- Enclosed spaces

- Container

- Cargo ship

- Dry cargo ship

- RO RO ship

- Passenger ship

- Oil tanker

- Ferry cruiser

- Bulk ship

- Oil Rigs

- Shipyard

- Dock

- Work ship

Specification

- Display：2.5” dot matrix 128*128 LCD display

- Backlight：User can set the backlight period, when alarm, the backlight will lighten automatically.

- Power Supply(GD4)：3.7V 1800mA rechargeable lithium battery, continuous working period can reach to 50h, continuous operating period can reach to 9 hour.

- Power Supply(GD4S)：3.7V 2300mA rechargeable lithium battery, continuous working period can reach to 80h, continuous operating period can reach to 12 hour.

- Concentration Unit：ppm, mg/m3, %VOL, %LEL (Concentration values are automatically converted by clicking the display.

- Display Information：Gas types, concentration value, time, battery status, alarm status, data storage status, etc.

- Calibration：One-key zero calibration for all sensors, two adjustable calibration values for span calibration.

- Alarm Mode：Audible-visual alarm, adjustable two-stage alarm threshold value.

- Password-protected：Password is required for calibration.

- Data Recovery：With restore factory default calibration function, it can restore to factory default set.

- Operating Language：Chinese or English operating menu is able to be changed freely.

- Explosion-proof Grade：ExiaⅡCT4

- Protection Grade：IP66

- Working Temperature：-20°C~50°C

- Working Humidity：0-95%RH (non-condensing)

- Body Material：ABS and PC

- Dimensions：155*78*35mm

- Weight：300g

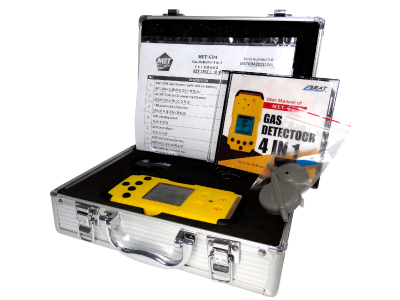

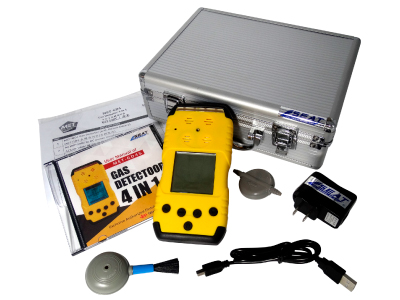

Kit List

1 Pc	Aluminum Hand Case
1 Pc	MET-GD4S Gas Detector (with Lithium Battery)
1 Pc	AC100~240V to DC Power Transformer
1 Pc	Air Blow Balloon
1 Pc	USB Power Cable / Data Line
1 Pc	MET-GD4S Instruction Disc
1 Pc	Quick Instruction
3 Pcs	Certificate
1 Pc	Kit List
